2-WAY NORMALLY CLOSED Valve
The submersible valves are watertight and corrosion resistant for direct deep sea Ocean submersion.
- Depths to 1000+ feet
- Nickel plated Brass Body
- Plastic Epoxy Coil & housing.
- Media pressures up to 1350 PSI
- Engineered to aid with environmental causes.

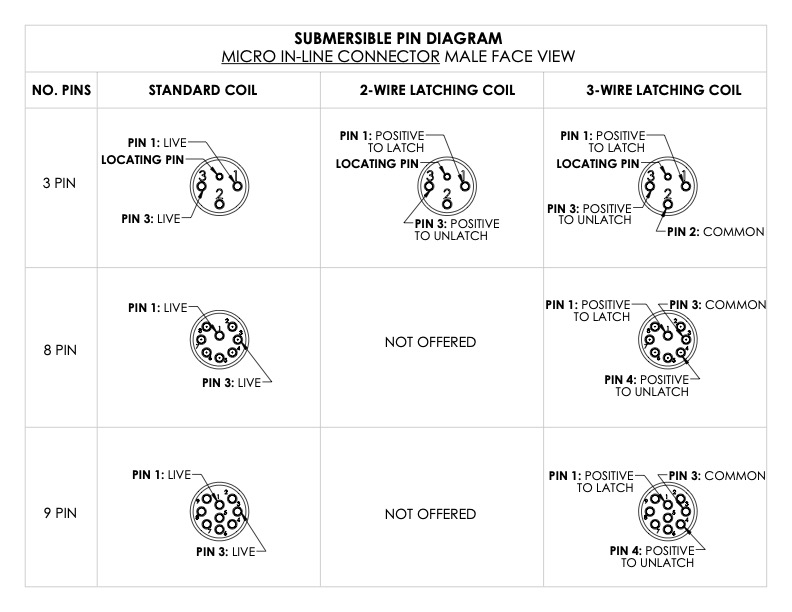

.jpg)
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | 1/4 NPT PORT |
|---|---|---|---|
| DC | STANDARD COIL | ||
| 1350 | 1/32 | .024 | 22G6✩D#W-△ |
| 550 | 3/64 | .052 | 22H6✩D#W-△ |
| 325 | 1/16 | .095 | 22J6✩D#W-△ |
| 160 | 3/32 | .156 | 22K6✩D#W-△ |
| 90 | 1/8 | .284 | 22N6✩D#W-△ |
| 70 | 5/32 | .404 | 22O6✩D#W-△ |
| 30 | 3/16 | .500 | 22P6✩D#W-△ |
Operating Conditions
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 10,000 PSI
- Leakage
- Bubble tight for standard valves.
Electrical Characteristics
- Coil Voltage
- 9/DC, 12/DC, 18/DC & 24/DC
- Nominal Power
- 13.5 Watts
- Coil Construction
- Plastic Epoxy Coil & Housing, Momentary Latching Coil Available
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Internal Components
- Stainless Steel
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 1/4" NPT. Optional SAE Gauge Port available
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 1.13 lb
- Options
- Consult factory

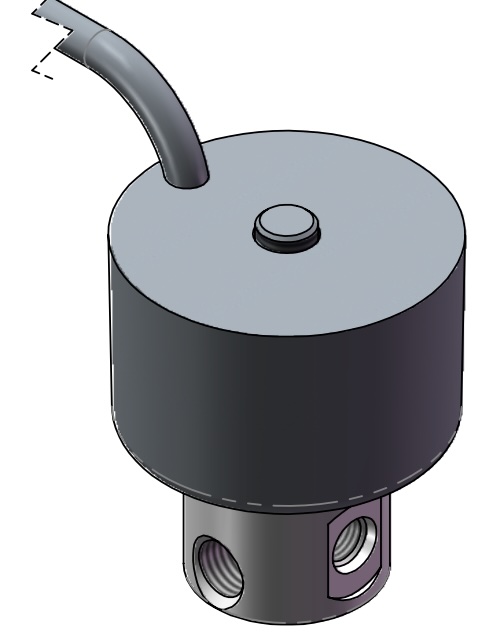

SERIES 20 2WNC SUBMERSIBLE VALVES
MODEL 22 1/4-18 NPT
2WNC CONDUIT CONNECTION
