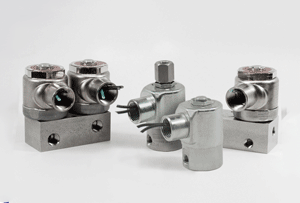

High Pressure Valves

PeterPaul high pressure valves operate with a pressure between 1000 and 3000 PSI. Medical, laboratory, instrumentation and industrial companies, etc. that require high pressure bottled gas with media such as 02, C02 and compressed Nitrogen use our valve in various applications.

2-Way Normally Open High Pressure Valves

PeterPaul single orifice valves in which the orifice is closed in the energized position and no flow can exist between the inlet and outlet ports.

Series/Model	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/EH21	1/8" NPT	0 - 3000	.022 - .084	3.42 x 2.69
20/H21	1/8" or 1/4" NPT	0 - 2000	0.01	3.48 x 1.69

3-Way Normally Closed High Pressure Valves (exhaust to atmosphere)

PeterPaul dual operator valves that allows the same media control as a three way normally closed single operator valve but at much higher pressure ratings.

Series/Model	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/EH23	1/4" NPT	0 - 3000	.022 - .100	3.44 x 3.81
20/H23	1/4" NPT	0 - 3000	.022 - .100	3.44 x 3.81

2-Way Normally Closed High Pressure Valves

PeterPaul single orifice valves in which the orifice is closed in the de-energized position and no flow can exist between the inlet and outlet ports.

Series/Model	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/EH22	1/8" or 1/4" NPT	0 - 5000	.010 - .100	3.25 x 2.63
20/H22	1/8" or 1/4" NPT	0 - 5000	.010 - .100	2.75 x 1.63

3-Way Normally Open High Pressure Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between exhaust and cylinder ports but flow does exist between inlet and cylinder ports.

Series/Model	Std. Port Size	Pressure (PSI)	Flow (CV)	Size (h x w)"	Watts
20/H24	1/8" or 1/4" NPT	0 - 1000	0.024	3.48 x 1.69
