Magnetic Latching Valves

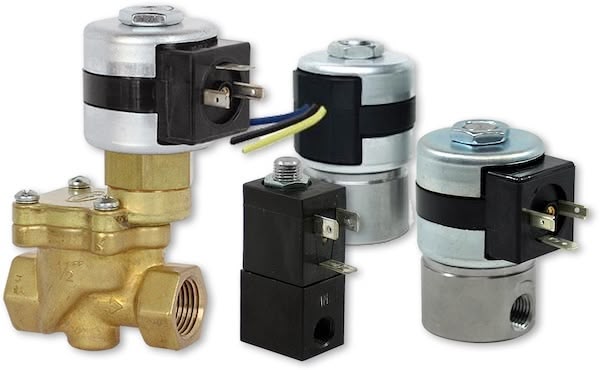

Magnetic latching valves

Through the use of a permanent magnet, the latching valves are bi-stable in either shifted state. This allows the valve to stay in either state indefinitely without drawing power. To shift the valve from one state to another, a short 50 millisecond DC voltage is applied to the coil. To shift the valve back, a reverse polarity pulse is applied. This makes the valve suitable for use in remote areas with limited power, and ideal where coil heating is undesirable, such as in medical and chemical analyzers.

2-Way Magnetic Latching Valves

PeterPaul single orifice valves in which the orifice is closed in the de-energized position and no flow can exist between the inlet and outlet ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/22 (REVERSE POLARITY) 1/8" or 1/4" NPT 0 - 500 .024 - .700 2.84 x 1.62
MLV20/22 (FIXED POLARITY) 1/8" to 1/4" NPT 0 - 500 .024 - .700 2.84 x 1.775
MLV20/N22 (FIXED POLARITY) CLASS I DIV II 1/8" or 1/4" NPT 0 - 500 .024 - .700 2.84 x 1.775
MLV20/H22 (REVERSE POLARITY) 1/8" to 1/4" NPT 0 - 3300 .010 - .100 2.84 x 1.62
MLV20/H22 (FIXED POLARITY) 1/8" to 1/4" NPT 0 - 2500 .010-.100 2.84 x 1.62
MLV20/NH22 (FIXED POLARITY) CLASS I DIV II 1/8" or 1/4" NPT 0 - 2500 .010-.100 2.84 x 1.62
MLV80/828 (REVERSE POLARITY) 1/" - 1" NPT 3 - 200 4.0 - 98 Up to 11.74 x 8.82

3-Way Normally Closed Magnetic Latching Valves (Exhaust to Atmosphere)

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports..

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/23 (REVERSE POLARITY) 1/8" or 1/4" NPT 0 - 400 .024 - .700 2.24 x 1.56
MLV20/23 (FIXED POLARITY) 1/8" or 1/4" NPT 0 - 385 .024 - .500 3.669 x 1.775
MLV20/N23 (FIXED POLARITY) CLASS I DIV II 1/8" or 1/4" NPT 0 - 385 .024 - .500 3.669 x 1.775

3-Way Normally Closed Magnetic Latching Valves (piped exhaust)

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and cylinder ports but flow does exist between cylinder and exhaust ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/23 (REVERSE POLARITY) 1/8" or 1/4" NPT 20 - 400 .024 - .500 3.669 x 1.775
MLV20/23 (FIXED POLARITY) 1/8" or 1/4" NPT 0-385 .024-.500 3.669x1.775
MLV20/N23 (FIXED POLARITY) CLASS I DIV II 1/8" or 1/4" NPT 0 - 385 .024 - .500 3.669 x 1.775

3-Way Directional Control Magnetic Latching Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the inlet and normally closed ports but flow does exist between the inlet and normally open ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/25 (REVERSE POLARITY) 1/8" or 1/4" NPT 0-500 .024-.214 3.59x1.62
MLV20/25 (FIXED POLARITY) 1/8" or 1/4" NPT 0 - 500 .024 - .214 3.661 x 1.775
MLV20/N25 (FIXED POLARITY) CLASS I DIV II 1/8" or 1/4" NPT 0 - 500 .024 - .214 3.661 x 1.775

3-Way Multi-Purpose Magnetic Latching Valves

PeterPaul dual orifice valves in which the body orifice is closed and sleeve orifice open in the de-energized position. No flow can exist between the common and normally closed ports but flow does exist between common and normally open ports.

Series/Model Std. Port Size Pressure (PSI) Flow (CV) Size (h x w)"
MLV20/26 (REVERSE POLARITY) 1/8" or 1/4" NPT 0-400 .024-.156 3.59x1.62
MLV20/26 (FIXED POLARITY) 1/8" or 1/4" NPT 0 - 175 .024 - .156 3.661 x 1.775
MLV20/N26 (FIXED POLARITY) CLASS I DIV II 1/8" or 1/4" NPT 0 - 175 .024 - .156 3.661 x 1.775
