2-WAY NORMALLY CLOSED Valve
PeterPaul explosion proof valves are used where fire or explosion hazards exist due to the presence of flammable gases or vapors, flammable liquids, combustible dust, or easily ignitable fibers. Hazardous Location valves are recommended, or in some cases compulsory, where a high level of protection from explosion is required.
- Explosion Proof
- The flagship valve initially created for fluid power industry.
- Heavy duty and made of stainless steel.
- A real workhorse with proven performance.
- It has the greatest amount of options available of all the valves.
- Wide range of orifice sizes from 1/32" to 1/4".
| + MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER | ||||
|---|---|---|---|---|---|---|---|
| AC | DC | 1/8 NPT PORTS | 1/4 NPT PORTS | ||||
| 500 | 500 | 1/32 | .024 | E22G7DCCM-∆ | E22G9DCCM-∆ | ||
| 250 | (500) | 250 | (500) | 3/64 | .052 | E22H7DCCM-∆ | E22H9DCCM-∆ |
| 200 | (400) | 200 | (400) | 1/16 | .095 | E22J7DCCM-∆ | E22J9DCCM-∆ |
| 125 | (300) | 125 | (250) | 3/32 | .156 | E22K7DCCM-∆ | E22K9DCCM-∆ |
| 100 | (200) | 100 | (200) | 1/8 | .284 | E22N7DCCM-∆ | E22N9DCCM-∆ |
| 75 | 50 | 5/32 | .404 | E22O7DCCM-∆ | E22O9DCCM-∆ | ||
| 50 | 25 | 3/16 | .500 | E22P7DCCM-∆ | E22P9DCCM-∆ | ||
| 20 | 5 | 1/4 | .700 | E22R7DCCM-∆ | E22R9DCCM-∆ | ||
Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM
+ Ratings in brackets are optional extended ratings; consult factory.
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (E22N9DCCM 120/60) repair pack (2KE22K AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (OE22NDDCCM 120/60)
Operating Conditions
- Media
- Air, water, and other fluids compatible with standard Buna seals. Hot water, steam gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 7.3 Watts DC — 9.5 Watts
- Coil Construction
- Molded Class F with third wire ground (Std.), Class H or Potted (Opt.)
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 1/8" and 1/4" NPT (other ports available).
- Housing
- Flame-Proof construction with 1/2" NPT conduit
- Listings
- Valves are UL listed for use in the United States and Canada for Hazardous Locations — Class I, Div 1, Group C and D – Class II, Div 1, Group E, F, and G; Div 2, Groups A, B, C, D, E, F, and G.
- Certification

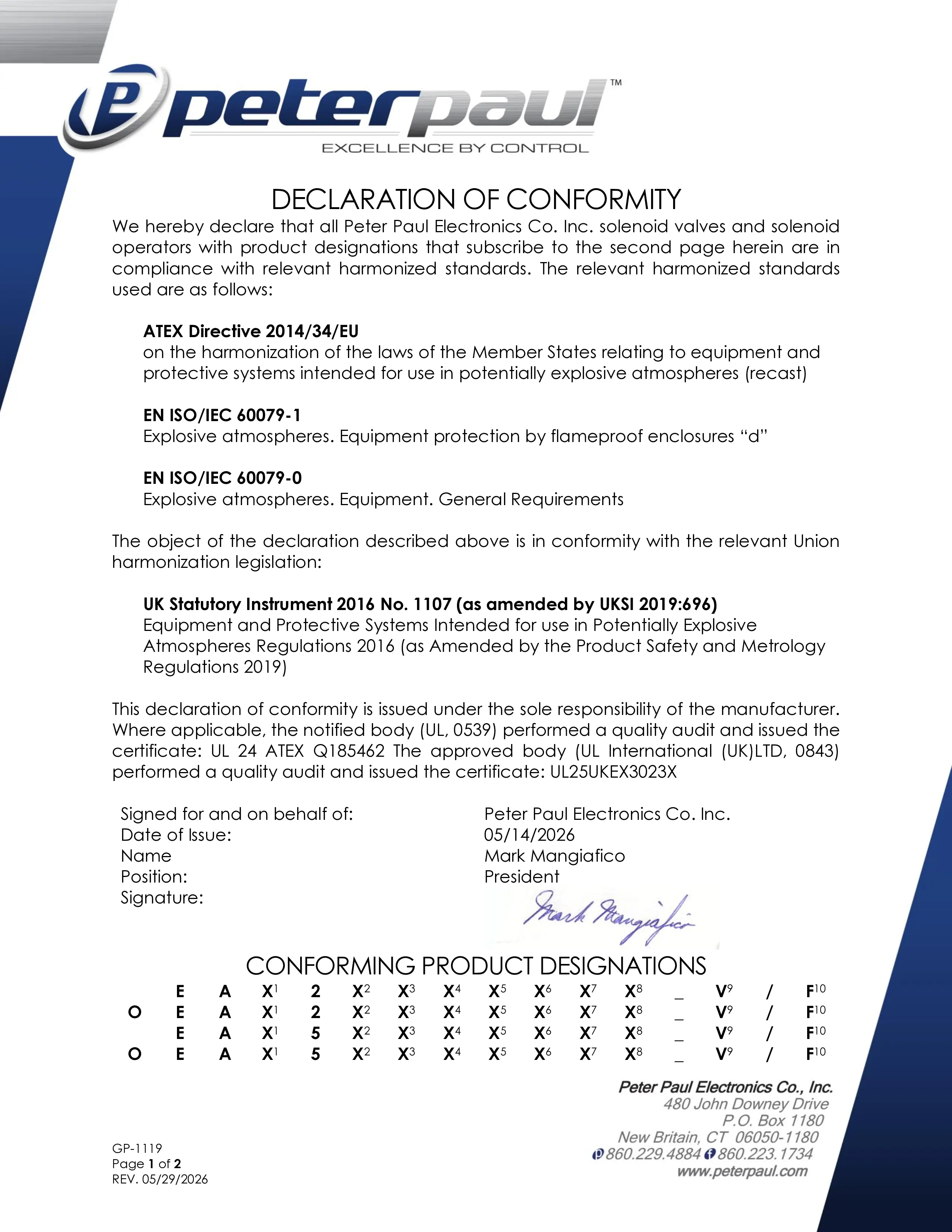

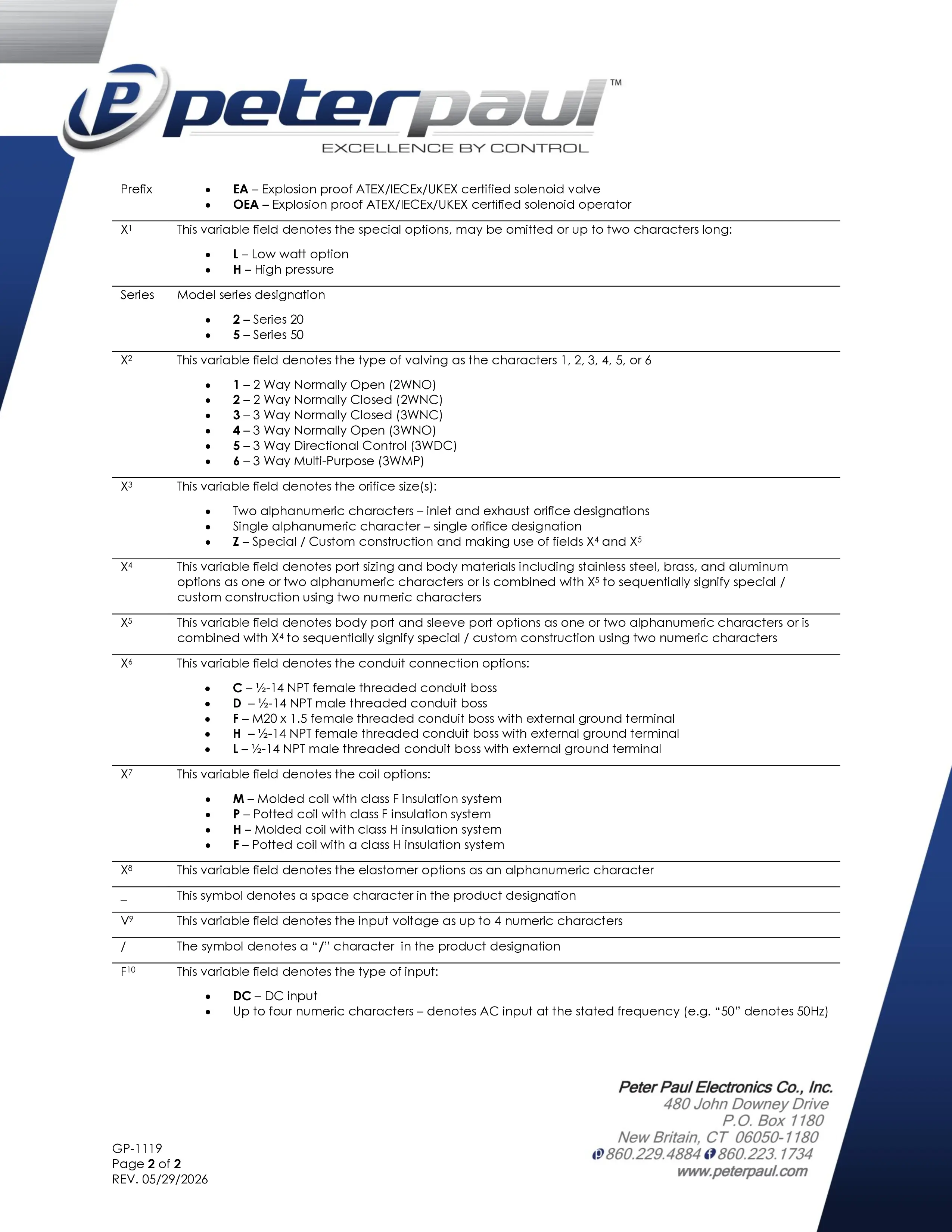

- North American IECEx/ATEX
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 1.38 lbs
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering, Manual Override, Alternate Elastomers*
Series 20 Hazardous Location Valves
MODEL E22 1/4-18 NPT
2WNC
EXPLOSION PROOF
MODEL E22 1/8-27 NPT
2WNC
EXPLOSION PROOF
MODEL E22 MANUAL OVERRIDE
2WNC
EXPLOSION PROOF
Minimum quantity required. Please contact sales for additional assistance.
sales@peterpaul.com
MODEL E22 METERING
2WNC
EXPLOSION PROOF
PeterPaul has created this page for you so you can calculate the flow or Cv (flow coefficient) to make the relationship visible between the pressure drop (the difference in pressure between two points of a liquid/gas carrying network) and the flow rate.
The use of this flow coefficient (Cv) calculator offers a standard calculation to compare valve capacities and sizing for a wide range of applications. The type and sizing of a valve or regulator can have a large impact on the performance of the assembly for transferring gas or liquids in the system.
Our sales department is ready to answer questions and to solve your valve needs. Please feel free to call, chat or email us.
Liquid Flow
Calculate Flow in GPM
Calculate Cv
Calculate P1-P2
Gas Flow P2 > 53% of P1 subsonic
Calculate Flow in CFM
Calculate Cv
Approx. Calculate P1
Approx. Calculate P2
Gas Flow P2 < 53% of P1 sonic
Calculate Flow in CFM
Calculate Cv
Calculate P1
