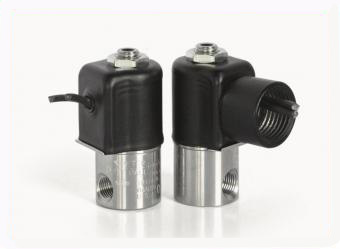

2-WAY NORMALLY CLOSED Valve
General purpose or safety valves for pneumatic and hydraulic applications. The versatility of these valves is increased to include the handling of hot air, hot water, refrigerants, and many other media by the use of different seals. Air and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials.
- General purpose valve with reduced power consumption.
- Increased versatility.
- For pneumatic and hydraulic applications.
- Increased capability to handle hot air, water, and refrigerants.
- High quality engineering.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER | ||||
|---|---|---|---|---|---|---|---|
| GAS | LIQUID | ||||||
| AC | DC | AC | DC | N.C. | N.C. | GROMMET 1/8" NPT | CONDUIT 1/8" NPT |
| 600* | 200 | 600* | 200 | 1/32 | .022 | LW52G8DGM | LW52G8DCM |
| 250 | 80 | 250 | 80 | 3/64 | .055 | LW52H8DGM | LW52H8DCM |
| 150 | 50 | 150 | 50 | 1/16 | .075 | LW52J8DGM | LW52J8DCM |
| 100 | 25 | 100 | 25 | 5/64 | .134 | LW52V8DGM | LW52V8DCM |
| 85 | 20 | 85 | 20 | 3/32 | .156 | LW52K8DGM | LW52K8DCM |
| 50 | 50 | 1/8 | .230 | LW52N8DGM | LW52N8DCM | ||
| 15 | 15 | 5/32 | .292 | LW52O8DGM | LW52O8DCM | ||
Operating Conditions
- Media
- Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many media require special seal materials. (Series 50 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5,000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 2.5 Watts DC — 2.5 Watts
- Coil Construction
- Non-molded Class A, Molded and potted Class F. (Class H optional)
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 1/8" NPT (Std.)
- Housing
- Grommet and 1/2" NPT conduit - many options available.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- Grommet Valve: 0.38 lbs, Conduit Valve: 0.44 lbs
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering and Alternate Elastomers*
Series 50 LW Low Watt Valves Conduit Connection
2WNC CONDUIT CONNECTION
10-32 PORTS
2WNC CONDUIT CONNECTION
BODY OPTION "E"
2WNC CONDUIT CONNECTION
BODY OPTION "O"
2WNC CONDUIT CONNECTION
BODY OPTION "R"
2WNC CONDUIT CONNECTION
METERED BODY
2WNC
CONDUIT CONNECTION
Series 50 LW Low Watt Valves Conduit/Bracket Connection
2WNC
CONDUIT/BRACKET CONNECTION
10-32 PORTS
2WNC
CONDUIT/BRACKET CONNECTION
OPTION "E"
2WNC
CONDUIT/BRACKET CONNECTION
OPTION "O"
2WNC
CONDUIT/BRACKET CONNECTION
BODY OPTION "R"
2WNC
CONDUIT/BRACKET CONNECTION
METERED BODY
2WNC
CONDUIT/BRACKET CONNECTION
Series 50 LW Low Watt Valves Grommet Leads
2WNC GROMMET WITH LEADS
2WNC 10-32 PORTS
GROMMET WITH LEADS
2WNC BODY OPTION "E"
GROMMET WITH LEADS
2WNC BODY OPTION "O"
GROMMET WITH LEADS
2WNC BODY OPTION "R"
GROMMET WITH LEADS
METERED BODY
2WNC GROMMET WITH LEADS
Series 50 LW Low Watt Valves Grommet/Bracket Leads
2WNC
GROMMET/BRACKET WITH LEADS
10-32 PORTS
2WNC
GROMMET/BRACKET WITH LEADS
BODY OPTION "E"
2WNC
GROMMET/BRACKET WITH LEADS
BODY OPTION "O"
2WNC
GROMMET/BRACKET WITH LEADS
BODY OPTION "R"
2WNC
GROMMET/BRACKET WITH LEADS
METERED BODY
2WNC
GROMMET/BRACKET WITH LEADS
Series 50 LW Low Watt Valves Yoke Leads
2WNC
YOKE WITH LEADS
10-32 PORTS
2WNC
YOKE WITH LEADS
BODY OPTION "E"
2WNC
YOKE WITH LEADS
BODY OPTION "O"
2WNC
YOKE WITH LEADS
BODY OPTION "R"
2WNC
YOKE WITH LEADS
METERED BODY
2WNC
YOKE WITH LEADS
Series 50 LW Low Watt Valves Yoke Spade Terminals
2WNC
YOKE WITH SPADE TERMINALS
10-32 PORTS
2WNC
YOKE WITH SPADE TERMINALS
BODY OPTION "E"
2WNC
YOKE WITH SPADE TERMINALS
BODY OPTION "O"
2WNC
YOKE WITH SPADE TERMINALS
BODY OPTION "R"
2WNC
YOKE WITH SPADE TERMINALS
METERED BODY
2WNC
YOKE WITH SPADE TERMINALS
