The little black box — magnetic components encased in epoxy for durability and reliability. Interior parts are stainless steel and anodized aluminum. The valves may be used with air, inert gas and liquid media at pressures from vacuum to 300 psi AC, 200 psi DC — depending upon orifice size and configuration. For those who require extra heat resistance and media compatibility, FKM and other elastomers are available.
- Small, lightweight and economical.
- Operating pressures from vacuum to 300 psi AC, 200 psi DC.
- Quality design and construction.
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER | ||||||
|---|---|---|---|---|---|---|---|---|---|
| AC | DC | N.C. | N.O. | N.C. | N.O. | LEAD WIRE | DIN STYLE | CONDUIT HOUSING | |
| 300 | 200 | 1/32 | 1/32 | .022 | .020 | 155GG2XGM | 155GG2XEM | 155GG2XCM | |
| 200 | 150 | 3/64 | 3/64 | .055 | .048 | 155HH2XGM | 155HH2XEM | 155HH2XCM | |
| 100 | 75 | 1/16 | 1/16 | .075 | .075 | 155JJ2XGM | 155JJ2XEM | 155JJ2XCM | |
| 75 | 40 | 3/32 | 1/16 | .130 | .075 | 155KJ2XGM | 155KJ2XEM | 155KJ2XCM | |
| 75 | 40 | 3/32 | 3/32 | .130 | .130 | 155KK2XGM | 155KK2XEM | 155KK2XCM | |
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (155HH2XGM 120/60) repair pack (K155HX AC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O155HH2DGM 120/60)
Operating Conditions
- Media
- Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 15 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.
- Nominal Power
- AC — 8.5 Watts, DC — 10.5 Watts
- Coil Construction
- Molded Class F. (155°C)
- Typical Response Time on Air
- 4 - 16 Milliseconds
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Internal Components
- Stainless Steel. Copper – AC Only.
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- 1/8" NPT (Std.)
- Housing
- Leadwires, 1/2” NPT Conduit and DIN Style Connector.
- Listings
- Most valves are UL and CSA listed.*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 0.27 lb to 0.30 lb depending on model and housing style.
- Repair Packs
- See table above.
- Options
- Round Brass or Stainless Steel Body, Stackable Construction, Alternate Elastomers and Magnetic Latching Coil. Female DIN Style Connector Part Number 50-17029.*

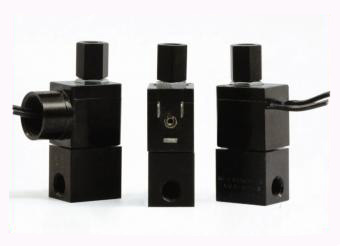

Series 15 General Purpose Valves
3W DIRECTIONAL CONTROL
CONDUIT CONNECTION
3W DIRECTIONAL CONTROL
DIN STYLE
3W DIRECTIONAL CONTROL
MOLDED LEADS
