3-WAY DIRECTIONAL CONTROL Valve

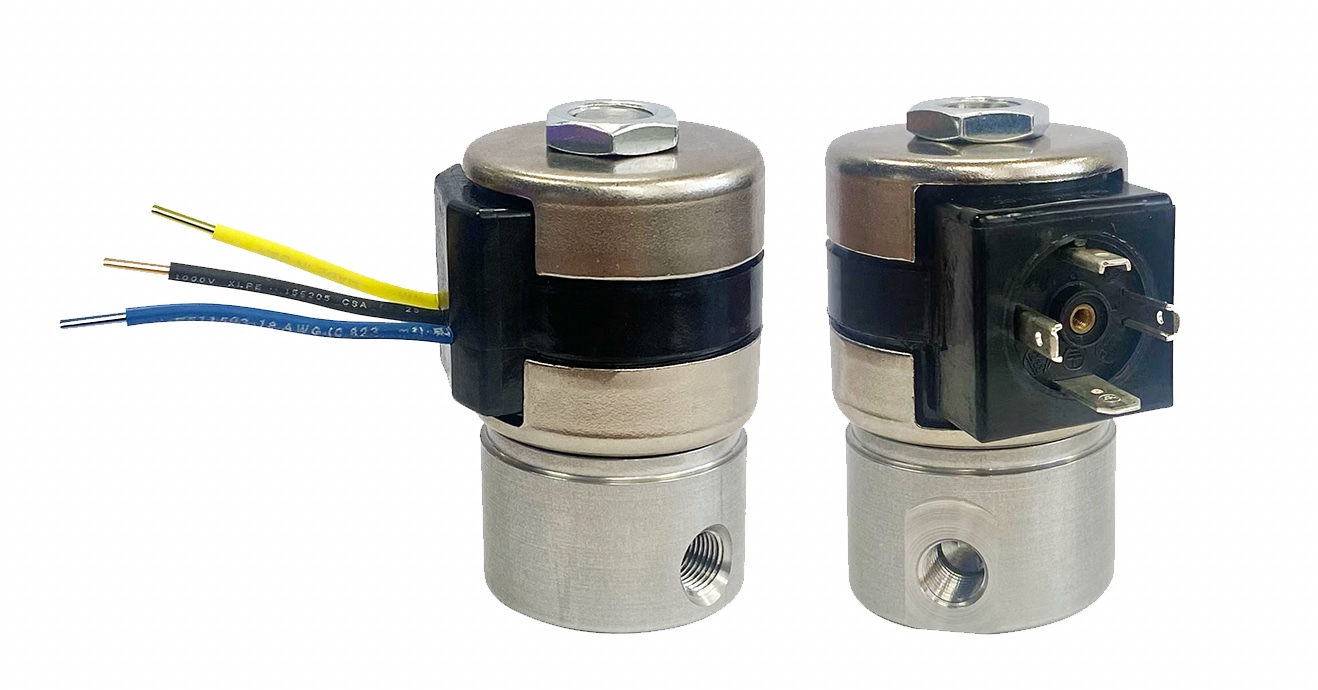

3-Way Directional Control Fixed Polarity Magnet Latching Valve - This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited. It is also valuable in equipment where coil heating, due to continuous application of power, is undesirable. Air, water and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require other seal materials.
- Common Black wire set to Neutral (-)
- Pulse Yellow lead to Positive (+) to latch
- Pulse Blue lead to Positive (+) to un-latch
- Common Black wire set to Positive (+)
- Pulse Yellow lead to Neutral (-) to un-latch
- Pulse Blue lead to Neutral (-) to latch
3 WIRE COIL
DIN COIL (3 TERMINALS WITH GROUND)
| MAX. OPER. PRESS. DIFF. | ORIFICE SIZE | CV FACTOR | VALVE NUMBER DIN COIL (3 TERMINALS WITH GROUND) | VALVE NUMBER 3 WIRE COIL | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DC | N.C. | N.O. | N.C. | N.O. | 1/8 NPT PORTS | 1/4 NPT PORTS | 1/8 NPT PORTS | 1/4 NPT PORTS | ||
| 500 | 1/32 | 1/32 | .024 | .024 | 25GG7X4LM-∆ | 25GG9Z4LM-∆ | 25GG7X3LM-∆ | 25GG9Z3LM-∆ | ||
| 250 | 3/64 | 3/64 | .052 | .052 | 25HH7X4LM-∆ | 25HH9Z4LM-∆ | 25HH7X3LM-∆ | 25HH9Z3LM-∆ | ||
| 180 | 1/16 | 3/64 | .095 | .052 | 25JH7X4LM-∆ | 25JH9Z4LM-∆ | 25JH7X3LM-∆ | 25JH9Z3LM-∆ | ||
| 155 | 1/16 | 1/16 | .095 | .095 | 25JJ7X4LM-∆ | 25JJ9Z4LM-∆ | 25JJ7X3LM-∆ | 25JJ9Z3LM-∆ | ||
| 100 | 3/32 | 3/32 | .156 | .156 | 25KK7X4LM-∆ | 25KK9Z4LM-∆ | 25KK7X3LM-∆ | 25KK9Z3LM-∆ | ||
| 80 | 1/8 | 3/32 | .214 | .156 | 25NK7X4LM-∆ | 25NK9Z4LM-∆ | 25NK7X3LM-∆ | 25NK9Z3LM-∆ | ||
Ordering Information:
Seal Material: Replace ∆ with desired code - Blank = Nitrile (Buna) S = Low Temp Buna. N = FKM* E = Neoprene A = EPDM
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (25JJ7XELM 12/DC) repair pack (K25JJ3L DC)
Operating Conditions
- Media
- Air, water, and other fluids are compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require other seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media.
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5,000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 6, 9, 12, 24/DC
- Nominal Power
- 8.0 Watts
- Coil Construction
- Molded Class B with three - 24” leadwires
- Typical Response Time on Air
- Approximate 50 millisecond pulse to energize and de-energize.
- Operating Speed
- Up to 600 CPM
- Duty Cycle
- Continuous
Mechanical Characteristics
- Internal Components
- Stainless Steel
- Elastomers
- Nitrile (Buna) standard. FKM, EPDM, Neoprene and Low Temp Nitrile (Buna) are available.*
- Orifice Diameter
- See table above.
- Porting
- 1/8” OR 1/4” NPT
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 1.2 lbs average
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering and Alternate Elastomers, Female DIN Style Connector Part Numbers DIN COIL (2 TERMINALS W/GROUND) #20-198 & DIN COIL (3 TERMINALS W/GROUND) #20-19102. Consult representative or factory for more options & specifications.
