3-WAY NORMALLY CLOSED (e to a) Valve

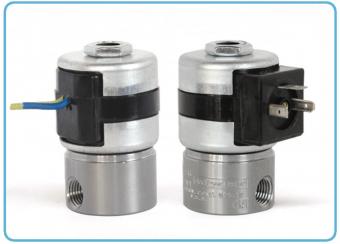

3-Way Normally Closed Magnet Latching Valve — Exhaust to Atmosphere This type of valve is often used in remote areas where continuous power may not be available or with battery-powered portable equipment where power capacity is limited. It is also valuable in equipment where coil heating, due to continuous application of power, is undesirable. Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials.
- Valve is magnetic latching.
- Meets today's demand for economy of space.
- Uses power only during latching and un-latching.
- Great for medical and chemical analyzers.
2 WIRE LATCHING
3PIN DIN LATCHING
VALVE SPECIFICATIONS
| MAX. OPER. | VALVE NUMBER | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRESS. DIFF. | ORFICE SIZE | CV FACTOR | DIN COIL | LEADED COIL | ||||||
| DC | INLET | EXH. | INLET. | EXH. | 1/8 NPT PORTS | 1/4 NPT PORTS | 1/8 NPT PORTS | 1/4 NPT PORTS | ||
| 400 | 1/32 | 1/32 | .024 | .024 | 23GG7DELM | 23GG9DELM | 23GG7DGLM | 23GG9DGLM | ||
| 150 | 3/64 | 1/16 | .052 | .095 | 23HJ7DELM | 23HJ9DELM | 23HJ7DGLM | 23HJ9DGLM | ||
| 100 | 1/16 | 1/16 | .095 | .095 | 23JJ7DELM | 23JJ9DELM | 23JJ7DGLM | 23JJ9DGLM | ||
| 100 | 1/16 | 3/32 | .095 | .156 | 23JK7DELM | 23JK9DELM | 23JK7DGLM | 23JK9DGLM | ||
| 75 | 3/32 | 3/32 | .156 | .156 | 23KK7DELM | 23KK9DELM | 23KK7DGLM | 23KK9DGLM | ||
| 50 | 1/8 | 3/32 | .214 | .156 | 23NK7DELM | 23NK9DELM | 23NK7DGLM | 23NK9DGLM | ||
| 20 | 3/16 | 3/32 | .500 | .156 | 23PK7DELM | 23PK9DELM | 23PK7DGLM | 23PK9DGLM | ||
Ordering Information:
When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (23JJ7DELM 12/DC) repair pack (K23JJDL DC)
When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O23JJDDELM 12/DC)
Operating Conditions
- Media
- Air and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, oils, some hydraulic fluids, and many other media require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*
- Valve Temperature Range
- Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.*
- Maximum Operating Pressure Differentials
- See table above.
- Burst Pressure
- 5000 PSI
- Leakage
- Bubble tight for standard valves.
- Vacuum
- To 5 Microns*
Electrical Characteristics
- Coil Voltage
- 6, 9, 12, 24/DC
- Nominal Power
- DC — 10.0 Watts
- Coil Construction
- Molded Class B with DIN 43650 Form A Connector (Std.), Leadwires (Opt.) For your convenience we have the female DIN style mating connector No. 20-198** available for an additional fee.*
- Typical Response Time on Air
- Approximate 50 millisecond pulse to energize and de-energize.
- Operating Speed
- Up to 600 CPM
Mechanical Characteristics
- Internal Components
- Stainless Steel
- Elastomers
- Nitrile (Buna) (Std.). Many other elastomers available.*
- Orifice Diameter
- See table above.
- Porting
- Standard 1/8” and 1/4” NPT (other ports available).*
- Life Expectancy
- Millions of cycles, depending on application, lubrication, etc.
- Valve Weight
- 1.2 lb average
- Repair Packs
- See table above.
- Options
- Alternate Port Locations, Metering and Alternate Elastomers, Female DIN Style Connector Part Numbers DIN COIL (2 TERMINALS W/GROUND) #20-198 & DIN COIL (3 TERMINALS W/GROUND) #20-19102. Consult representative or factory for more options & specifications.
Series 20 Model 23 Magnetic Latching
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL WITH LEADS
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL WITH LEADS
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL WITH LEADS
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL WITH LEADS
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL WITH LEADS
3WNC EXHAUST TO ATMOSPHERE MAGNETIC LATCHING COIL WITH LEADS
